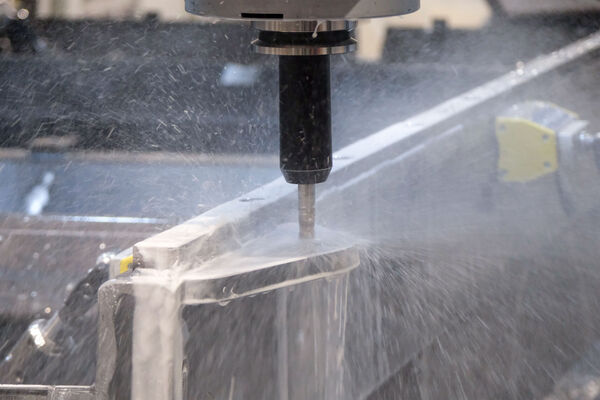

    Milling

    The high-performance horizontal machining centers and the CNC vertical machining centers named Haas VF 2, 6, 7, 11 provide high-capacity, and more, flexible production of a wide range of parts. The centers are used for milling smaller parts that make part of our products as well as for machining welded large-size structures for external clients for whom we use quality technology by FERMAT.

    Milling

    The high-performance horizontal machining centers and the CNC vertical machining centers named Haas VF 2, 6, 7, 11 provide high-capacity, and more, flexible production of a wide range of parts. The centers are used for milling smaller parts that make part of our products as well as for machining welded large-size structures for external clients for whom we use quality technology by FERMAT.

    OKUMA MCR-A5CII

    The OKUMA MCR-A5CII 30 high-speed double-column machining center enables us to efficiently mill oversized parts from 5 different sides. The bridged double-column structure with square, prismatic design has great rigidity to withstand axial, lateral, and torsional loads even when machining hard materials.

    The X-axis reduces the weight of the table and workpieces with roller bearings, allowing parts with a maximum weight of up to 43 000 kg to be machined without reducing accuracy. The Y-axis receives the cutting vibration and enables high-quality machining surface. The Z-axis enables powerful cutting in the whole stroke area. The W-axis provides the positioning of cross rail with NC control.

    Many different processes can be performed continuously in auto operation with the auto tool changer (ATC) and auto attachment changer (AAC), greatly increasing productivity and efficiency of the entire machine.

    Parameters

    Travels on X axis

    6 700 mm

    Travels on Y axis

    3 600 mm

    Travels on Z axis

    800 mm

    Travels on W axis

    1 200 mm

    Effective width between columns

    3 150 mm

    Table to spindle nose

    0 ÷ 1 850 mm

    Working surface (l x w)

    6 500 x 2 500 mm

    Maximum load

    43 000 kg

    Speed range of spindle

    30 ÷ 6 000 min-1

    Rapid traverse

    X: 30; Y: 32; Z: 20 m/min

    Feed rate

    1 ÷ 10 000 mm/min

    Tool magazine capacity

    80 ks

    Spindle drive

    26 kW

    Dimensions of the machine (l x w x h)

    16 430 x 7 280 x 6 300 mm

    Weight of the machine

    59 000 kg
