PARKOM 234

The PARKOM 234 is a two floor semi-automated parking system.

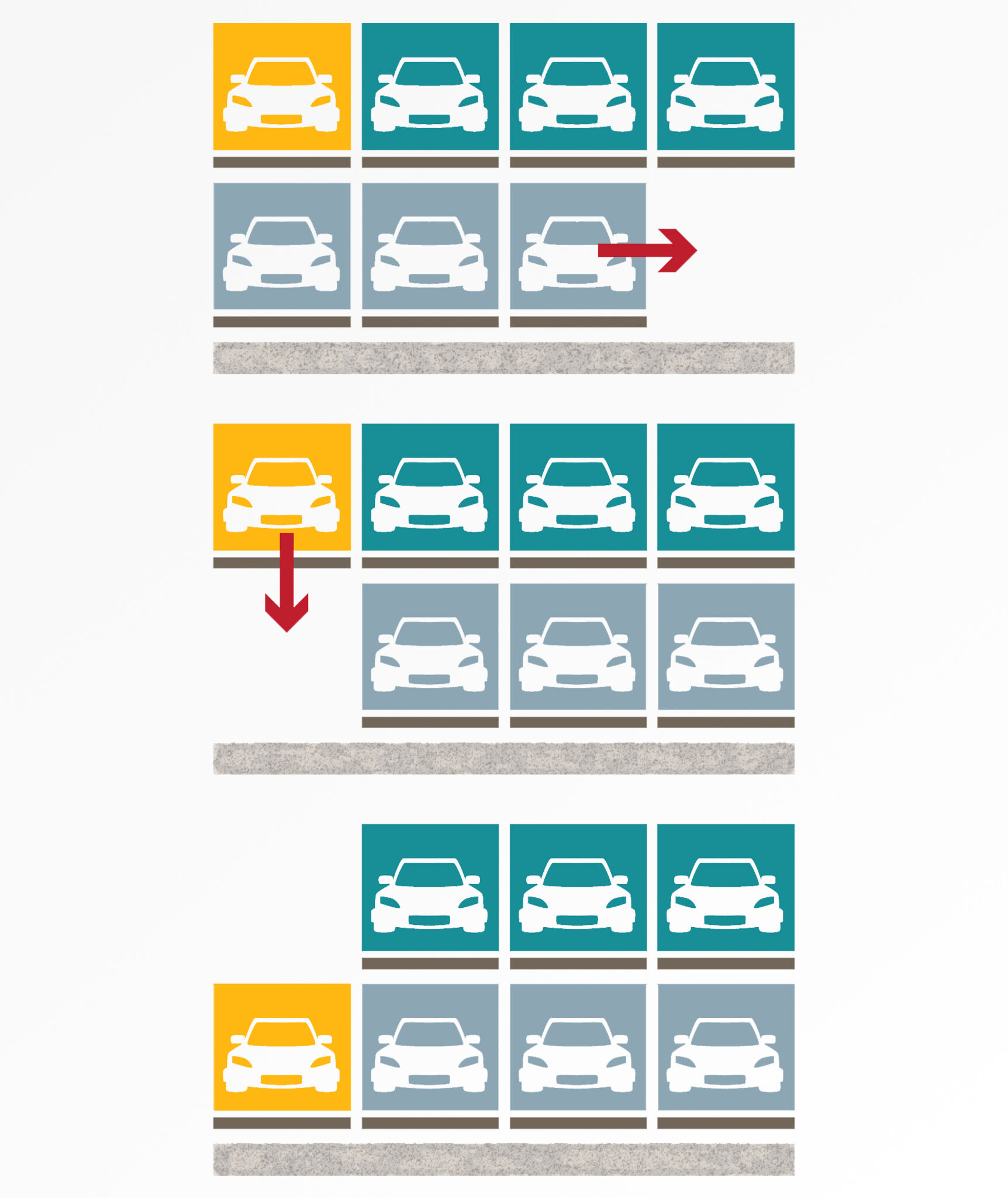

The system can be built with a foundation pit (partially embedded in the ground) or without a foundation pit (above ground). The entrance pallets are always at ground level. Horizontal movement of the pickup pallets makes it possible to create a space through which the vehicle can be picked up when entering or exiting from the top / bottom position.

The system can be equipped with optional accessories according to the client's choice (turntable, access system, ramps and others).

The industrial control system provides control of all PARKOM functions. The control systems can be customized to customer requirements and usage (private or public parking).

The system allows to construct a structure with a maximum of 10 positions next to each other in two layers.

The PARKOM semi-automated parking system is available for different vehicle heights in a range between 155 cm and 220 cm, at the vehicle's length to 540 cm and 230 cm wide.

The maximum weight of the vehicle is up to 2600 kg.

The PARKOM 234’s maximum capacity is 19 vehicles. Individual facilities can be combined.

THE ADVANTAGES OF THE SYSTEM:

» compact system with minimal demands on the construction;
» various installation options - overground or partially embedded in the ground;
» simple installation into existing building;
» the possibility of delivering a system with or without cover;
» the minimal walking distance and quick access to stored vehicles.
